KMI-2 40A 2P 400V Kanlux disconnector
Switch disconnector KMI-2 40A 2P 400V Kanlux
The switch-disconnector is used to disconnect the circuits crossed by rated current.
Background information
- EAN13: 5905339272553
- Vendor code: 27255
- Place of use: inside

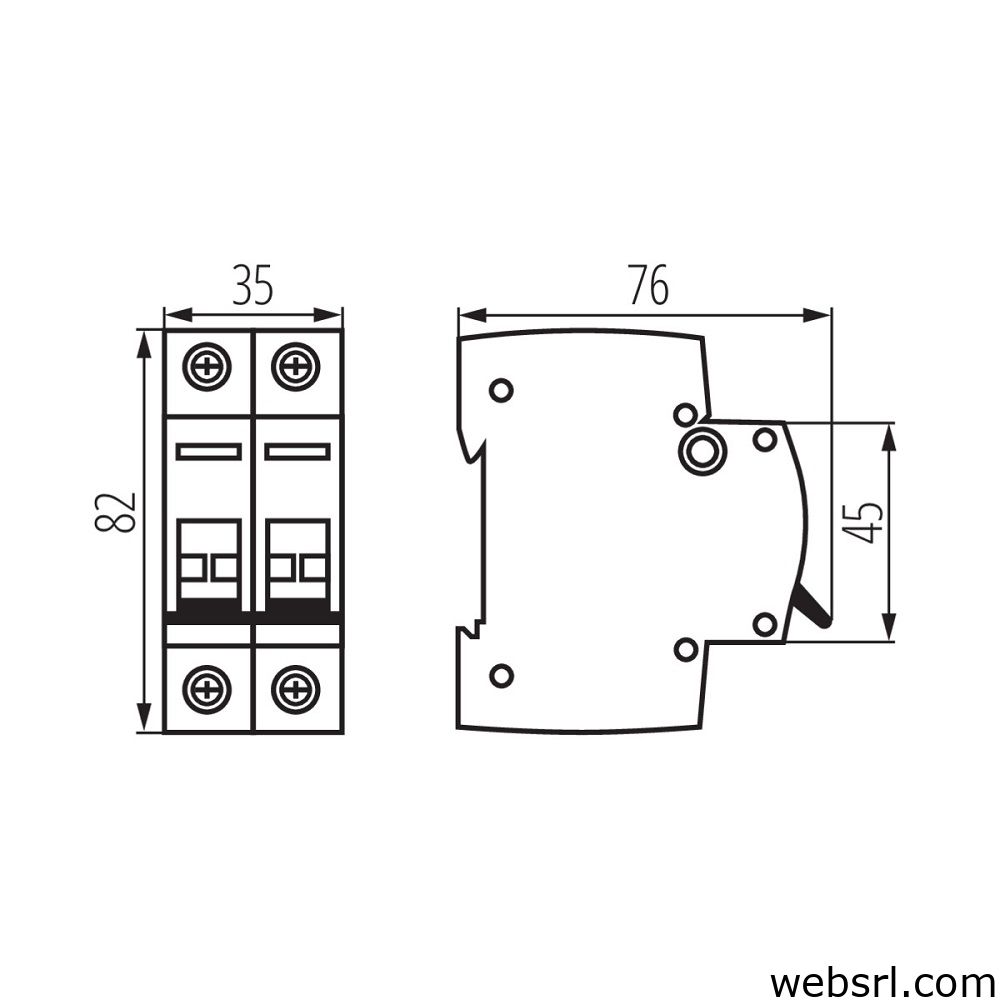

Weight and dimensions
- Height [mm]: 82
- Width [mm]:35
- Length [mm]:76
- Weight: 162g
Technical data
- Category of use: AC-22A
- Nominal frequency [Hz]: 50/60
- Nominal tension [V]: 230/400 AC
- Modules: 2
- Rated current [A]: 40
- IP Grade 20
- Sections of cables used [mm]: 1÷50
- Operating temperature [°C]: -25÷45
- Standards: PN-EN 60947-3
