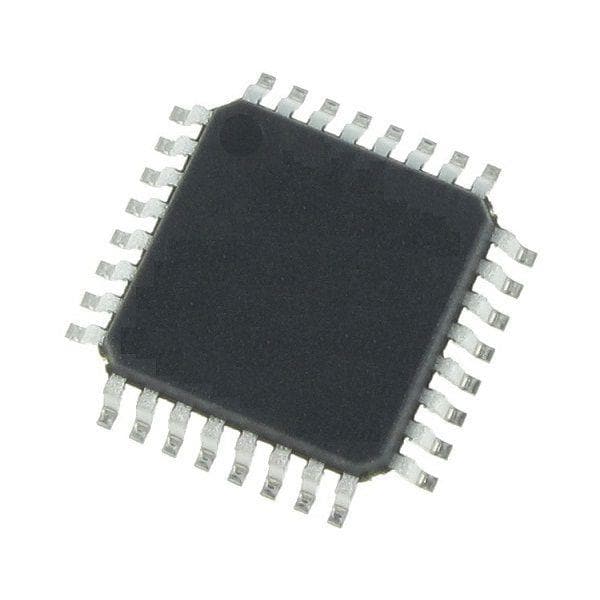

Microcontroller AT90USB162-16AU Microchip

The AT90USB162-16AU Is a high performance, low power 8-bit AVR RISC-based microcontroller combining 16 kb ISP flash memory with read-when-write capability, EEPROM 512B, 22 general purpose I / O lines, 32 working registers for general use, two flexible timers / counters with comparison and PWM modes, USART, programmable watchdog timer with internal oscillator, SPI serial port, debugWIRE interface for debug and on-chip programming, and five software-selectable power saving modes. The device operates between 2.7 and 5.5 V. By executing powerful instructions in a single clock cycle, the device achieves a throughput approaching 1 MIPS per MHz, balancing power consumption and processing speed.

• AVR® 8-bit high performance, low power microcontroller
• Advanced RISC architecture
• Non-volatile program and data memories
• USB 2.0 device module at full speed with stopping when transfer is complete
• On-chip debug interface (debugWIRE)
• Power-on Reset and programmable Brown-out detection
• Internal calibrated oscillator
• Sources of external interrupts and int erne
• Standby mode, power saving, shutdown, standby and extended standby
• 8 MHz at 2.7 V and 16 MHz at 4.5 V (industrial range) Maximum frequency

Applications

industrial field, automation and control of detection and instrumentation, test and processes, computers and computer peripherals

Technical characteristics

• Product Range : AVR Family AT90USB Series Microcontrollers
• CPU speed: 16MHz
• Program Memory Size : 16KB
• RAM Memory Size : 512Byte
• Number by Pin : 32Pin
• MCU Case Template : TQFP
• No. of I / O : 22I / O
• Embedded Interface Type : I2C, SPI, UART, USART
• Supply Voltage Min : 2.7V
• Max Supply Voltage :  5.5V
• MCU family : 8051
• MCU series : AT90USB
• Automotive Qualification Standard : -
• Moisture Sensitivity Level (MSL) : MSL 3 - 168 hours
