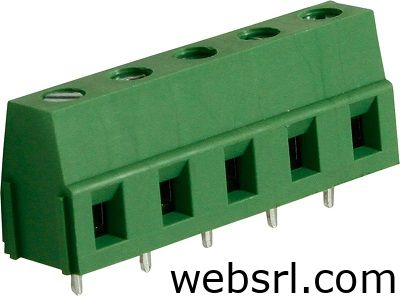

PCB terminal block Pitch 7.5mm horizontal / s 5P
ND3344
PCB terminal block Pitch 7.5mm horizontal / s 5P
Standard profile
Double interlocking mechanism with 2 and 3 poles for greater resistance
Stackable solid block end 4-12
Guided pin alignment
Withstand voltage - AC1500V / 1min
Pin / terminal - tinned brass
Wire clamp - nickel plated brass
Screw / pair - M2.5 steel, 0.4Nm nickel-plated brass
Recommended dimensions for hole on printed circuit 1.5 mm
Product specifications
| Length | 37.5 mm |
|---|
Supplier Code: RND 205-00070
Brand
RND Connect
Supplier code
RND 205-00070
