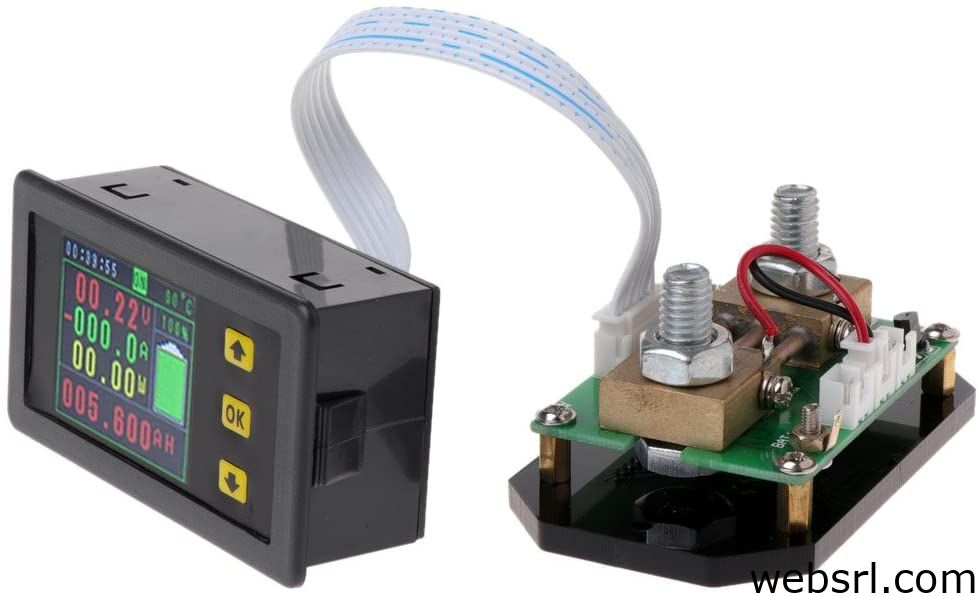

Capacity counter with display for 12V 24V 48V batteries
WB352
Capacity counter for 12V 24V 48V batteries
Features
- Bi-directional power recognition for charge and discharge detection
- You can recognize easily bidirectional power features
- The direction of the link does not need to be adjusted
- Power off the power saving function,after power off the number of AH and WH can be saved earlier shutdown.
- Practical for observing and measuring.
- The display function of time and AH data does not affect the measurement.
- The AH percentage can be set without affecting the direct relief measurement.
- Voltage, current, AH, WH, time, power, displayed simultaneously
- With flexible exit function key, switch on and off.
- Equipped with 1 voltage, 1 current, 1 temperature and other advanced protection functions
Technical specifications
- Input voltage: 6V ~ 75V (self-powered measurement)
- 0 ~ 120V (voltage measurement range when powered externally)
- Voltage measurement: 0.01 V ~ 120 V.
- Input current measurement range: 0 ~ 100 A / 0 ~ 200 A / 0 ~ 300 A / 0 ~ 500 A.
- Electric current: 0.1A ~ 100A / 0.1A ~ 200A / 0.1A ~ 300A / 0.1A ~ 500 A.
- Capacity measurement range: 0.001 Ah ~ 65000.00 Ah
- energy measurement range: 0.00KWH ~ 99999.9WH
- External power supply voltage range: 6-60 V.
- Display size: 1.8 color LCD display inches
