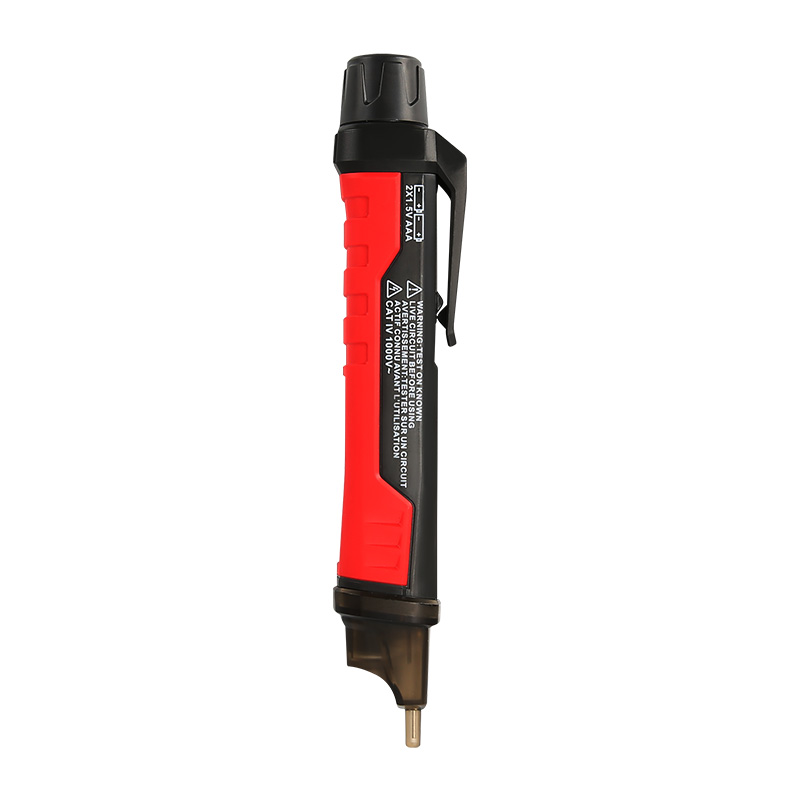

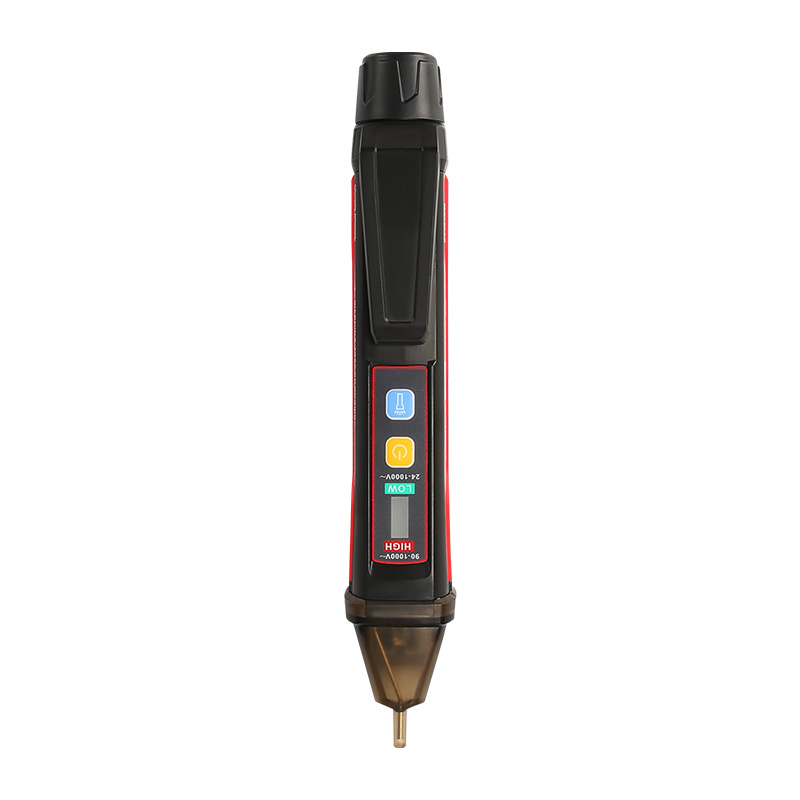

UT12M-EU IP67 Voltage Detector UNI-T
UT12M-EU IP67 Voltage Detector UNI-T
The UT12M-EU from UNI-T is a professional-grade voltage detector designed for use in demanding environments. With IP67 protection against dust and water and the ability to withstand drops from up to 2 meters, this device stands out for its durability and reliability.
Additionally, the UT12M-EU can detect magnetic fields, making it particularly useful for technical diagnostics of voltage sources and interference.
Key Features
-
Certifications: CE, UKCA, cETLus
-
Auto power-off
-
Audible buzzer alert
-
LED visual indicator
-
IP67 protection (dust and water resistant)
-
AC voltage detection
-
Selectable high/low voltage detection modes
-
Magnetic field (solenoid) detection
Technical Specifications
| Feature | Value |
|---|---|
| AC Voltage (Low mode) | 24V ~ 1000V |
| AC Voltage (High mode) | 90V ~ 1000V |
| Operating Frequency | 50/60 Hz |
| Magnetic Field Detection | Yes |
| Built-in Flashlight | Yes |
| Audible and Visual Indicators | Yes |
| Buzzer | Yes |
| LED Indicator | Yes |
| Auto Power-Off | Yes |
| Low Battery Indicator | Yes |
| Double Injection Molding | Yes |
| Drop Resistance | Up to 2 meters |
General Data
-
EAN Code: 6935750512487
-
Power Supply: 2 × 1.5V batteries (R03 type - included)
-
Color: Red and Grey
-
Net Weight: 72 g
-
Dimensions: 160.5 × 21.5 × 25 mm
-
Accessories Included: Batteries
-
Packaging: Blister with English manual
-
Carton Quantity: 40 pieces
-
Carton Dimensions: 415 × 245 × 235 mm
-
Gross Weight per Carton: approx. 3.8 kg
