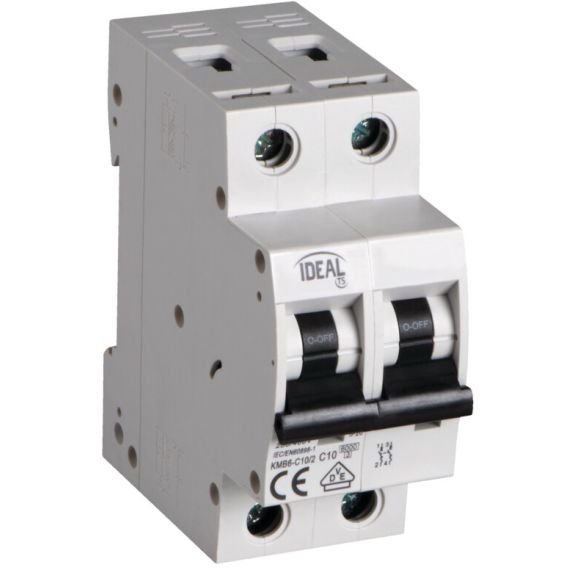

Kanlux 2P 10A circuit breaker
KA2132
Kanlux 2P 10A circuit breaker
Automatic circuit breaker: used for protection against overloads and short circuits. Complies with EN60898-1 standards.
Characteristics
- Marca: Ideal by Kanlux
- Supplier code: 32584
- EAN code: 5905339325846
- Model: KMB6-C10/2

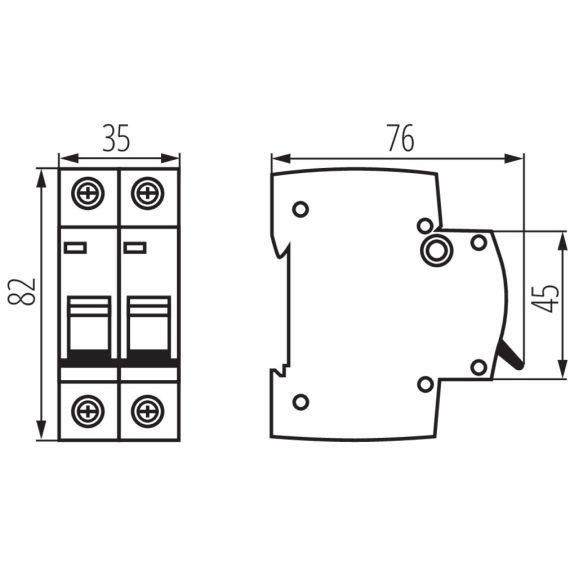

Weight and size
- Height [mm] 82
- Width [mm] 35
- Length [mm] 76
- Weight 186g
Technical data
- Rated voltage [V] 230 AC
- Nominal frequency [Hz] 50
- Rated current [A] 10
- Rated short-circuit current [A] 6000
- Release properties C
- Energy limitation class 3
- Modules 2
- Application 2
- IP 20 rating
- Sections of used cables [mm] 1÷25
- Operating temperature [°C] 5÷40
- Standard PN-EN 60898-1
Brand
Kanlux
Current
10A
Packaging
Loose
Supplier code
32584
