KMP 400V 20-25A Kanlux motor protection switch
KA2023
Motor protection circuit breaker KMP 400V 20-25A Kanlux
The motor protection switch protects the three-phase motor circuits.
It is possible to combine the accessories combined with the switches: auxiliary contacts, switches and a watertight cover.
Background information
- Brand: Ideal
- EAN13: 5905339240736
- Vendor code: 24073
- Color: white

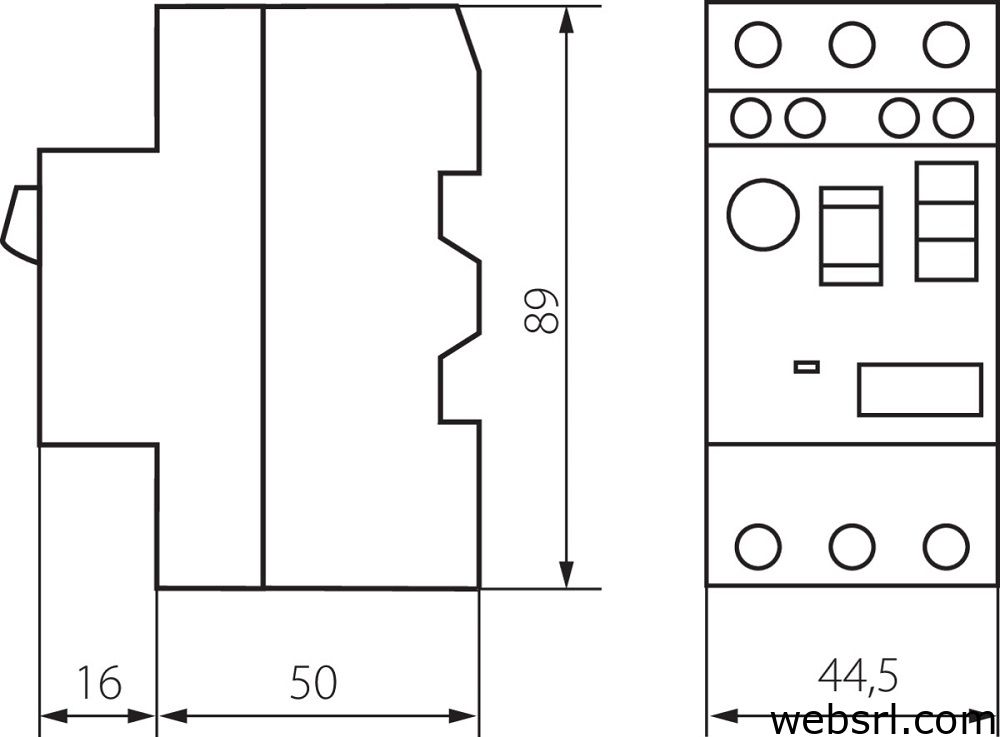

Weight and dimensions
- Weight: 260g
Technical specifications
- Color: white
- Rated operational voltage Ue [V]: 400
- Rated insulation voltage Ui [V]: 690
- Rated impulse withstand voltage Uimp [V]:6000
- Type of connection: terminal block
- IP grade 20
- Setting the overcurrent switch [A]: 20-25
- Instant action switch [A]: 327
- Thermal current lthe [A]: 25
- Category of use: AC-3
- Three-phase rated power - 230 / 240V [kW]: 5.5
- Three-phase rated power - 400V [kW]:
- Three-phase rated power - 440V [kW]: 11
- Three-phase rated power - 500V [kW]: 15
- Three-phase rated power - 690V [kW]: 22
- Mounting location: for binary TH35
- Standards: PN-EN 60947-4-1, PN-EN 60947-4-1
Brand
Kanlux
Current
20-25A
IP protection degree
IP20
Nominal tension
690V
Supplier code
24073
Typology
Motor protection switch
EAN
5905339240736
