Twilight sensor for din rail AZ 10A TH 35 Kanlux
KA1144

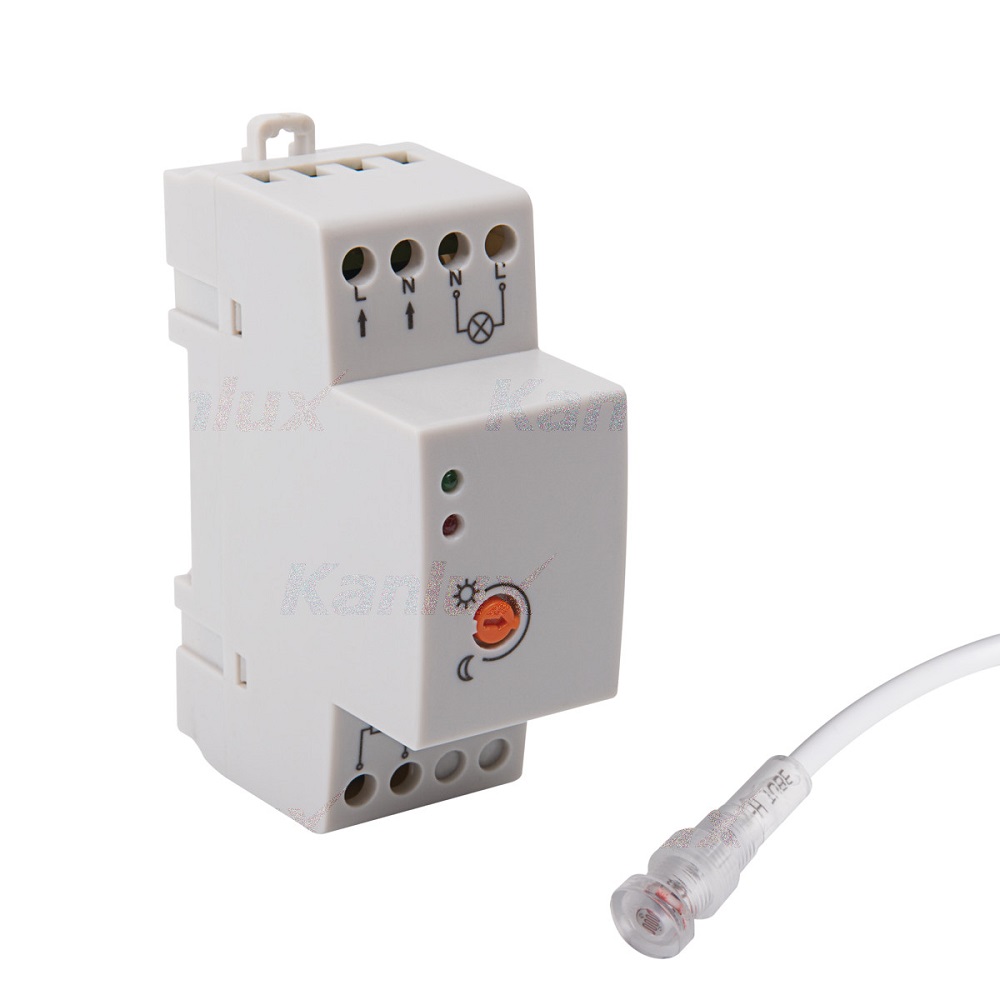

Twilight sensor for din rail AZ 10A TH 35 Kanlux
The twilight switch is designed to activate and deactivate the lighting circuits or other electrical appliances according to the level of natural light (day / night).
Basic information
- EAN13: 5905339223708
- Vendor code: 22370
- Color: white
- Place of use: inside and outside

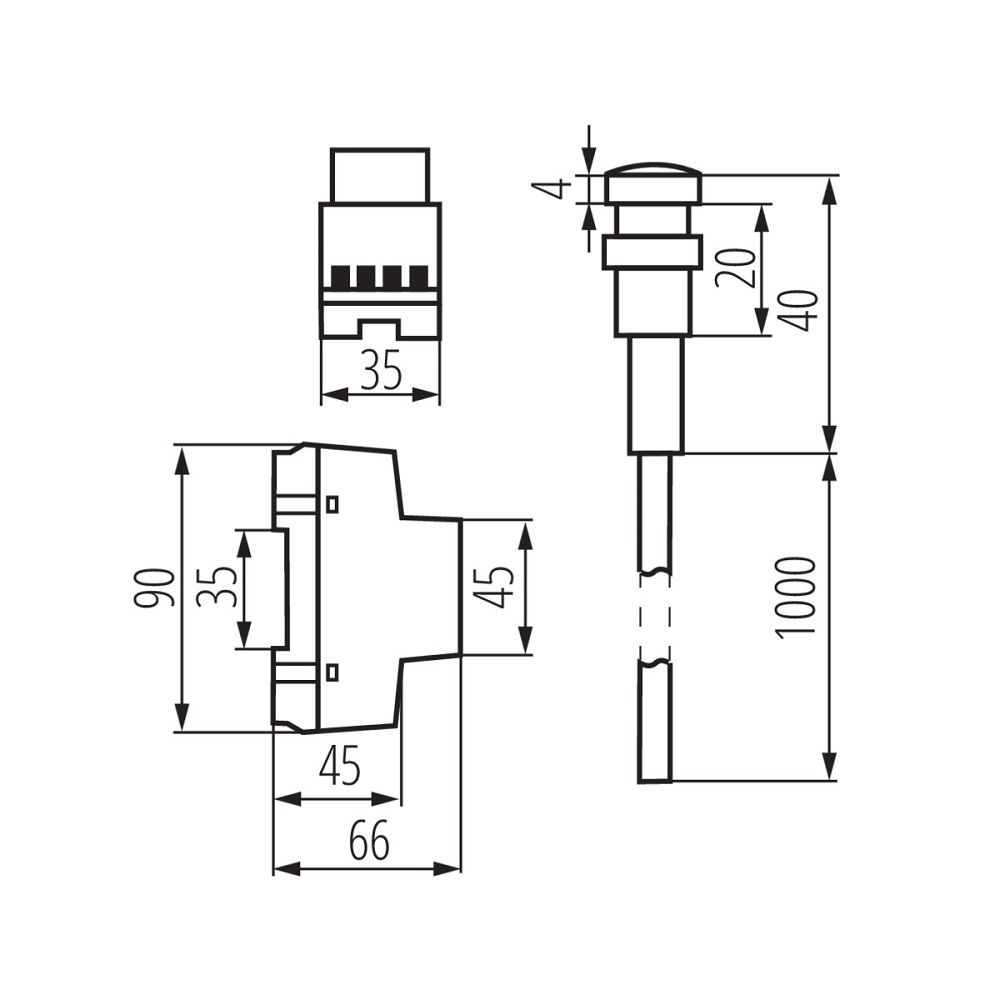

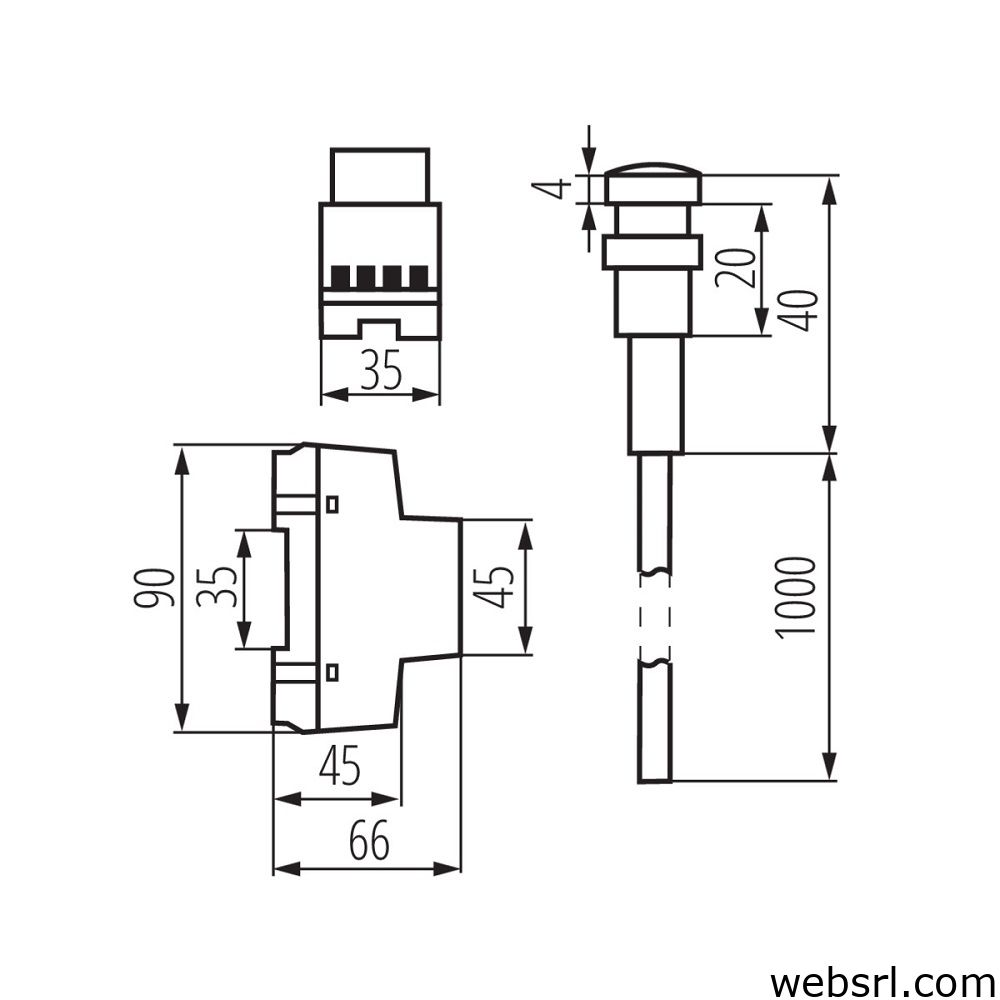

Weight and dimensions
- Height [mm]: 90
- Width [mm]: 66
- Length [mm]: 35
- Weight: 130g
Technical data
- Rated voltage [V]: 220-240 AC
- Nominal frequency [Hz]: 50/60
- Current nominal [A]: 10
- Maximum load [W]: 2300
- Operating temperature [°C]: -20÷40
- Degree of protection against electric shock: II
- IP degree 20/65
- Color: white
- Hysteresis: 20Lx
- Mounting location: for binary TH35
- Standards: EN60730-1; PN-EN 62052-11
Brand
Kanlux
Color
White
Current
10A
IP protection degree
IP65
Nominal tension
220-240V
Power
2300VA
Supplier code
22370
Typology
Light sensor
EAN
5905339223708
