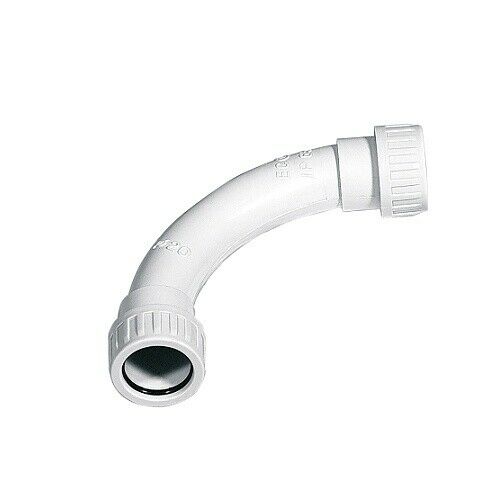

Narrow radius curve RK IP65 diameter 25mm gray ECCS25
The ECCS25 90° narrow radius bend has a diameter of 25 mm;
it is used to join together two RK series rigid protective tubes of equal size (both with a diameter of 25 mm).
The type of material used Is the shockproof PVC-based technopolymer, with self-extinguishing degree V0 according to the UL94 standard.
The color of these curves is gray RAL 7035.
The internal gasket makes these curves watertight: the degree of protection is IP 65, therefore the joint can also be used for external systems.
Features
EAN |
8032636766281 |
---|---|
Model |
ECCS25 |
Diameter |
25mm |
Material |
Technopolymer |
Color |
Gray RAL7035 |
Degree of protection |
IP65 |
Application |
RK rigid tubes |
Radius of curvature |
85mm |
